Glacial Marine Drift in Northwest Washington

A significant portions of the lowlands of northwest Washington are underlain by glacial marine drift. To get a sense of how glacial marine drift gets deposited, a little satellite imagery provides a good overview.

Southern coast of Chile

Plumes of silt and clay are poured into the marine waters from nearby melting glacial ice.

Northwest Greenland

Another source of glacial marine sediment is from melting glacial ice floating on the sea surface. Ice bergs as well can provide sediment to the sea floor miles from the glacial front.

In northwest Washington, the glacial marine drift was deposited during the late stages of the last glacial period. The mass of thick glacial ice that was on the order of 5,000 feet thick in the area between 18,000 and 15,000 years ago had isostatically loaded the land surface such that the current land surface was hundreds of feet lower than the current elevation.

As the ice thinned the area became inundated with sea water. Floating glacial ice on the water surface melted and dropped sediment onto the sea floor. Sediment also was delivered by plumes of sediment rich meltwater that entered into the shallow water from ice covered nearby upland areas. Much of the glacial marine drift is predominantly clayey silt but also includes drop stones and coarser sediment dropped out by the floating glacial ice.

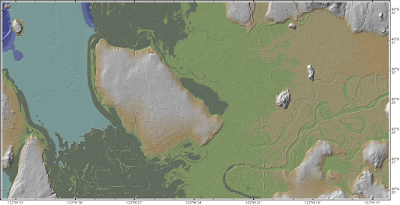

What the lower Skagit valley may have looked like when inundated with sea water.

Ice would have been floating on the water and the ice margin on land would have been very nearby. Glacial marine drift covers areas from Marysville to the Canadian border and includes area in the San Juan Islands and near Port Townsend. The glacial marine drift is a predominant unit around Bellingham.

Post glacial marine deposition, the land surface rapidly rebounded above sea level.

DEM of Skagit Flats and Samish Flats with an upland area between
The upland area is where the Skagit Airport is located
This upland is underlain by clayey silt glacial marine drift

Post emergence, the upper glacial marine drift has undergone some compaction via wetting and drying, such that the upper layers of the glacial marine drift below the weathered top soil layer are very dense and compact.

Very hard glacial marine drift. Note the drop stone pebble.
Also note haw the compaction process has led fractures within the drift

Areas where the unit has remained saturated such in long term year round wetlands or at depth below the year round groundwater level have not undergone wetting and drying compaction and remain very soft.

Very soft glacial marine drift in sample tube from geoprobe boring

The geotechnical properties of the marine drift differ from glacial till, and generally allow determination of the difference without the need for fossils. However, it is always fun to find fossil evidence to back up the interpretation.

Worm tubes removed from soil boring in glacial marine drift
